Shimo Expanded Polystyrene Panels(SEPS)
Asia Cuanon graphite polystyrene panel is made from BASF’s Neopor® material by a new technique. Compared with ordinary EPS panel, it has more advantages.
Executive standards: GB/T 29906-2013 “External thermal insulation composite systems based on expanded polystyrene”

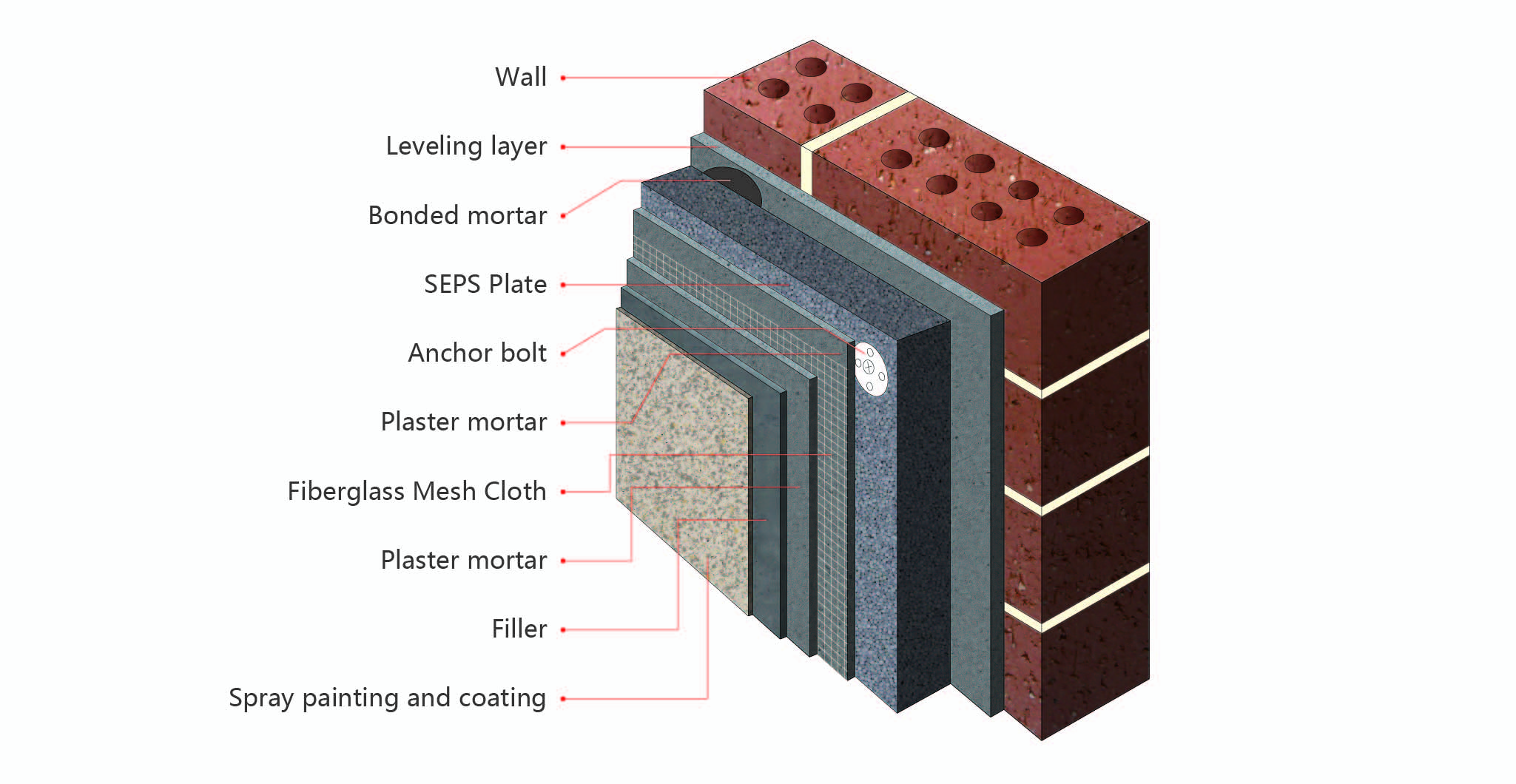

System structure
Advantages
1.Fire-proof performance reaches flame-retardant B1 level.
2.Stronger heat insulation ability
3.Lower cost for the same effect
4.Reducing consumption and saving resources

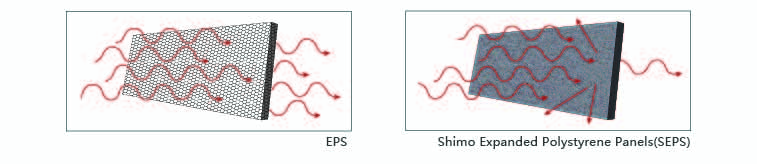

Stronger heat insulation ability
Graphite polystyrene panel is the product made from the most commonly used EPS and further refined by chemical method. It contains graphite particles, which can reflect heat radiation like a mirror, and contains infrared absorption materials which can greatly improve the thermal insulation performance, thereby reducing the heat loss of buildings. Its heat insulation ability is 30% higher than that of ordinary EPS.

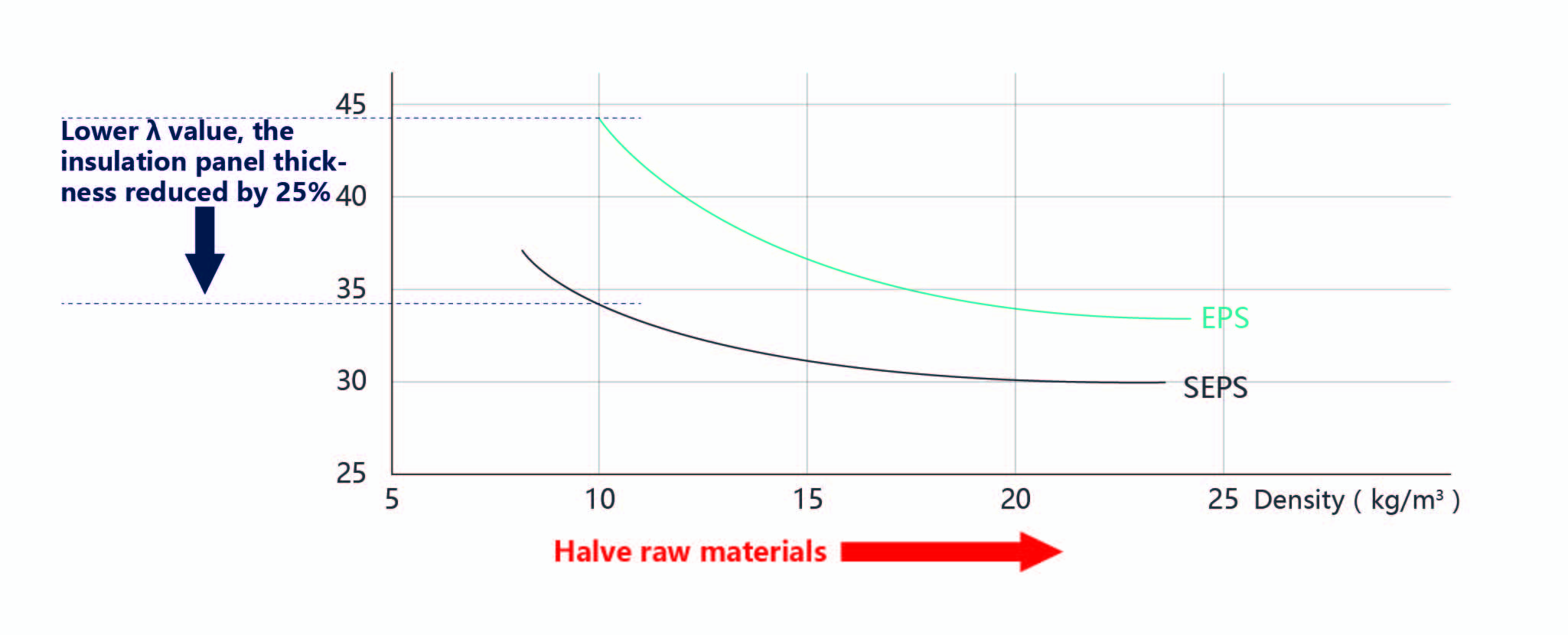

Lower cost for the same effect
The outstanding insulation ability of graphite polystyrene panel is especially obvious at low density. When the insulation system achieves a low conductivity coefficient of 0.033W/(m.k), the usable area can be 200 m2 with only 170kg of graphite polystyrene panel. If conventional EPS insulation panel is used, it will take about 300 kg, which is equivalent to saving 40% of the cost.

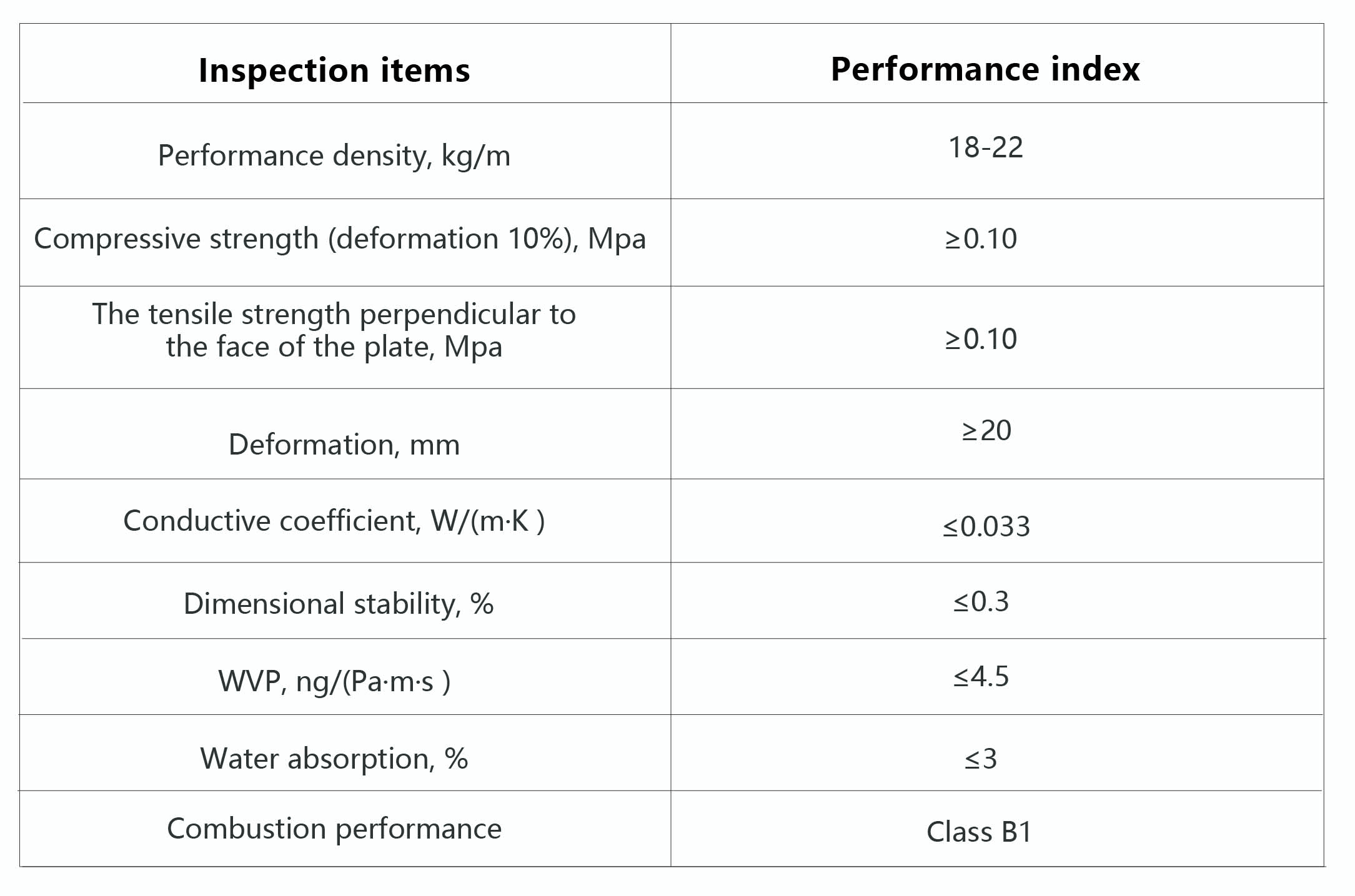

Technical performance index
